Menu

The toolkit features a complete menu system ready to be used in-game. The highlight of the menu is the settings screen, which allows the player to adjust their graphics, audio, and control settings.

Note

Check out the menu template in the Showroom_MenuSystem demo scene, in the Implementation > Demos > Showroom > Scenes folder.

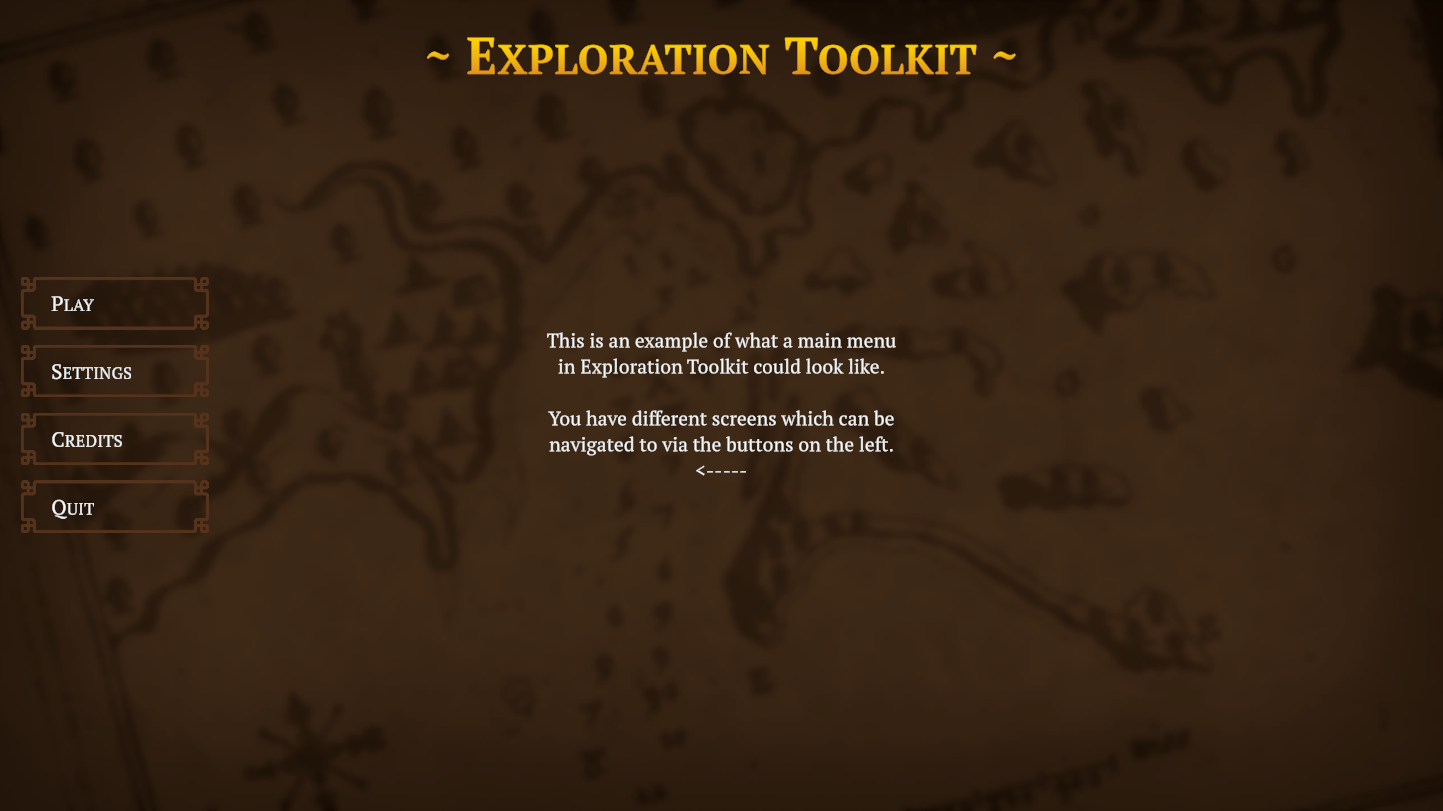

Screens

The menu is divided up into a number of screens. The demo comes with a few screen templates for you to use and expand upon.

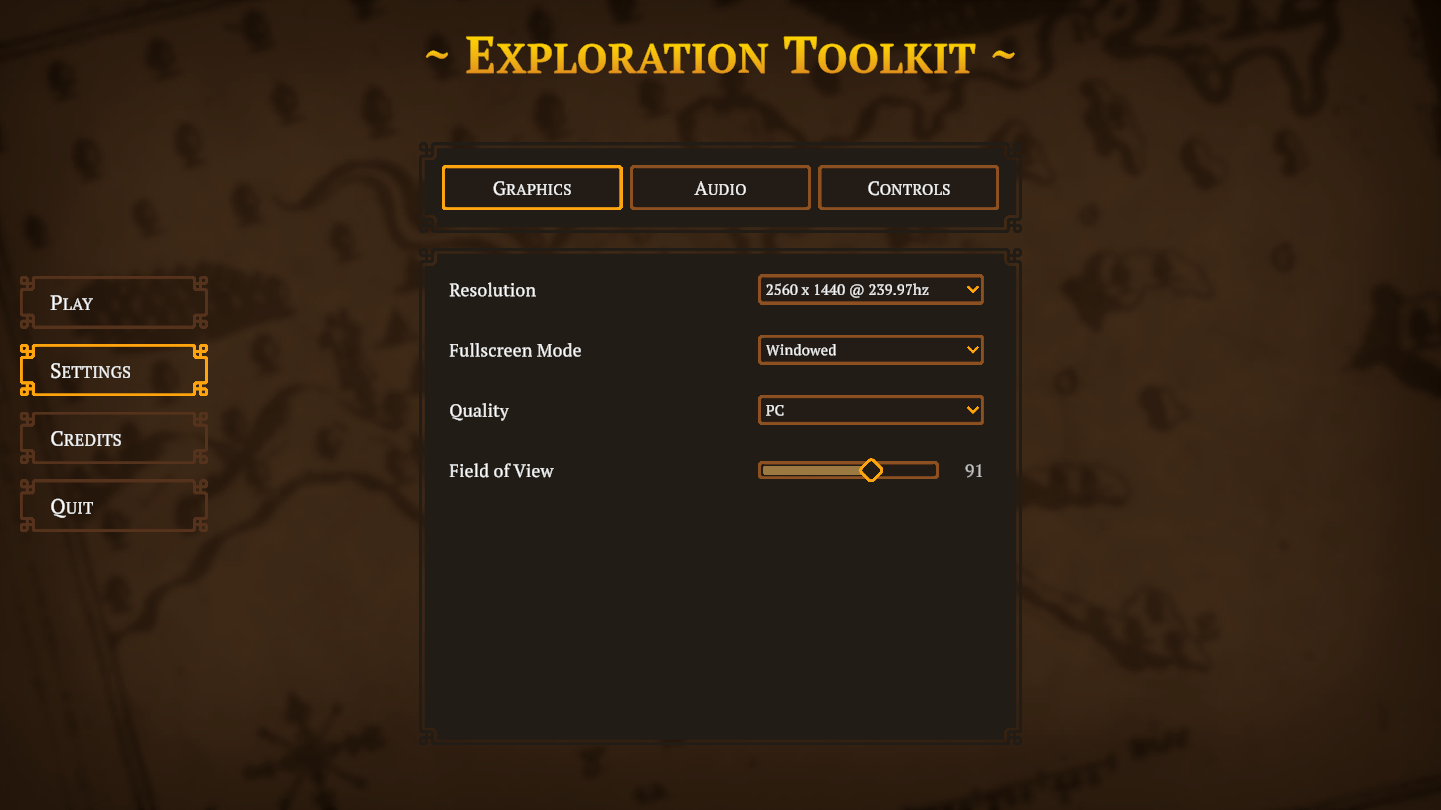

Settings Screen

This is the main attraction. Here, you can modify graphical, audio, and control settings. I recommend diving into the setting page related scripts to see how this is setup.

In the menu scene, you'll notice the ExplorationToolkitGameSettings prefab. This is a persistent object which loads in the settings from PlayerPrefs and manages their current state. When you adjust the FOV slider, that value is sent to the ETGameSettings component on the prefab, where the setting is updated, saved to PlayerPrefs, then invoked as an event for components which may want to know when a certain setting has been changed.

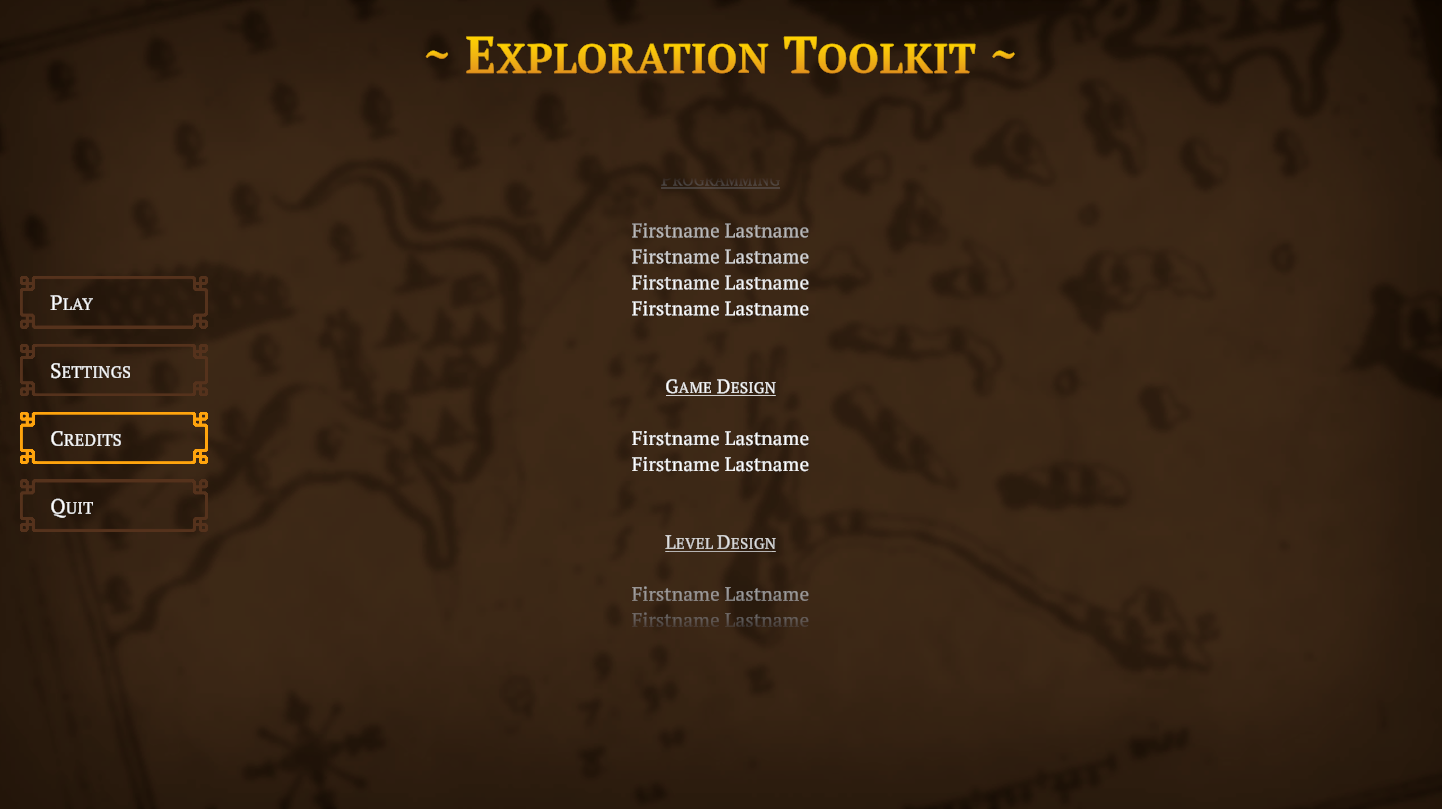

Credits Screen

This is an automatic scrolling credits screen. Modify the text component and add whatever you like to the Content child object. You can also adjust the scroll speed.

Creating a Screen

Let's say you want to add a Help screen to the menu, where the player might get a quick rundown on how the game works.

1. Create a new script. Add it to the ExplorationToolkit.Menu namespace, and inherit from BaseMenuScreen.

   namespace ExplorationToolkit.Menu
   {
       public class HelpMenuScreen : BaseMenuScreen
       {
           // Add any initialization code to the OnEnable() function.
       }
   }

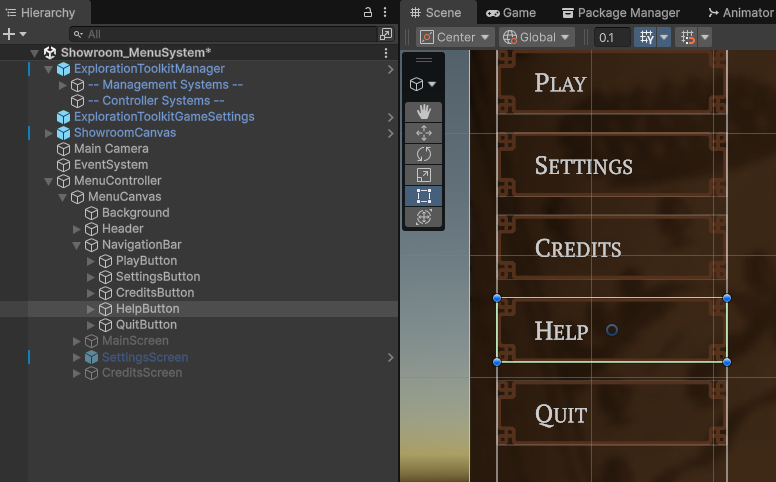

2. Create a navigation button on the left side panel.

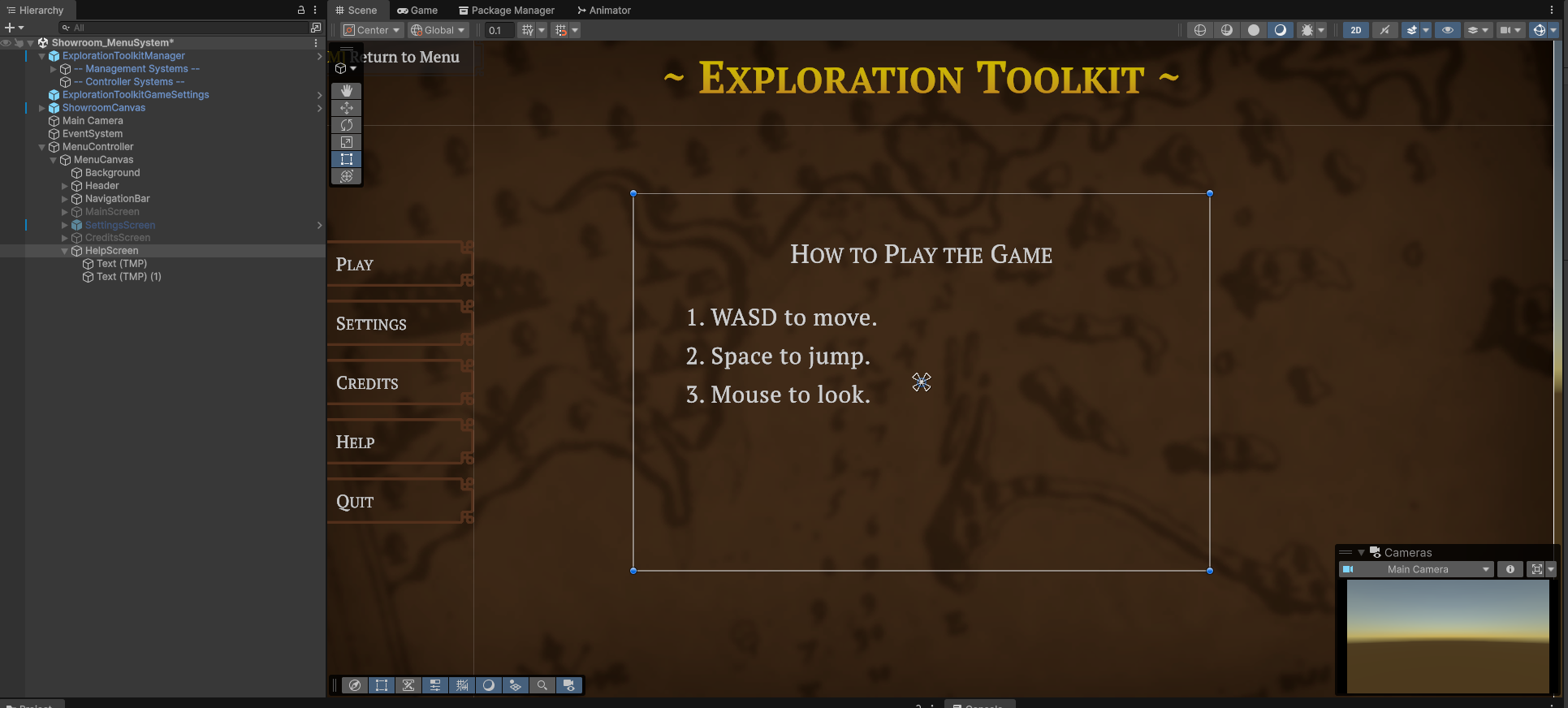

3. Create an empty GameObject for the screen and fill it with your content.

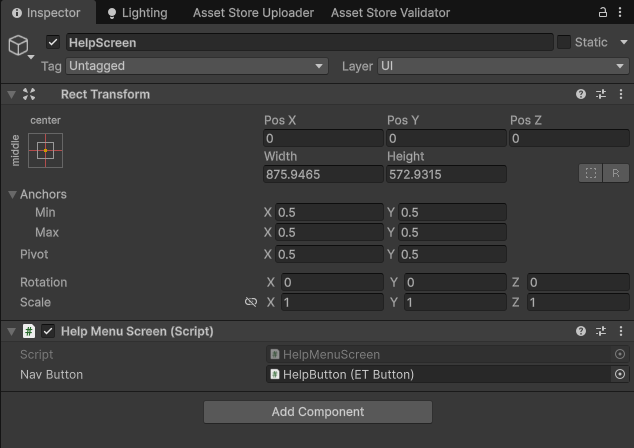

4. Attach the script as a component, then reference its associated nav button.

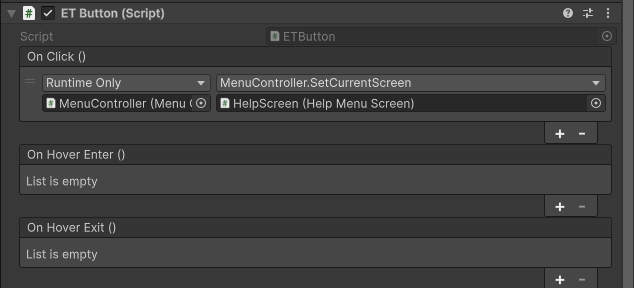

5. Select the nav button again, and down in the ETButton component's OnClick event, connect that to the MenuController's SetCurrentScreen() function, sending over your new window component.

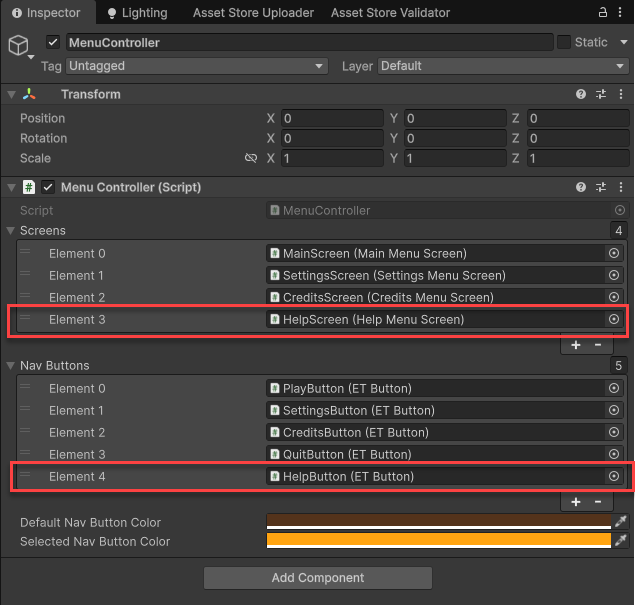

6. Finally, select the MenuController and add both the screen and nav button to their respective lists. Screen 0 is what gets set at the start of the game.
