Minimap

Minimaps can help players navigate your game world, displaying the player, their orientation, as well as Navigation Markers. They can be customized with different map textures, borders, icon design, and more.

Setup

1. Map Texture

Maps are textures which the minimap can render, move, and rotate. Here are some things you'll need to have in mind when creating your map texture:

  • Ideally, have the scene origin in the centre of the texture.
  • Figure out the Pixels Per Unit Ratio. This is how many pixels on the texture represent 1 unit in length.
  • Make sure your texture is large enough, as it may need to be zoomed in on.
  • Check out some of the sample map textures in the Implementation > Demos > Showroom > Textures > Maps folder.

Tip

An easy way of getting a texture of your map, is to create an orthographic camera and point it down on your scene. Take a high-res screenshot, or capture segments of the scene and stitch them together. If you have Photoshop, you can open up the sample map textures to see what effects I added to produce the look you see above.

2. Prefab

In the Implementation > Prefabs > Navigation folder, drag the Minimap prefab into the scene.

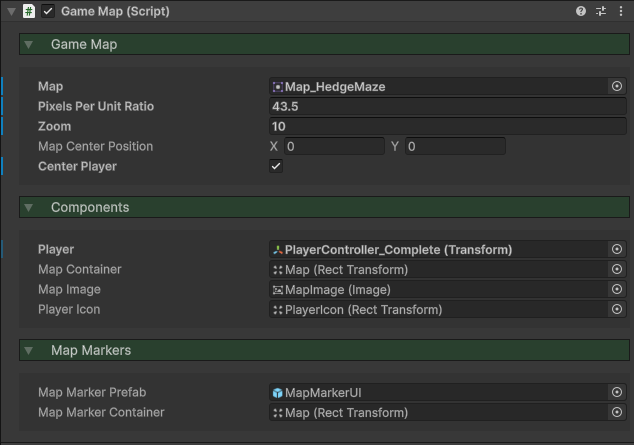

Down in the GameMap component, you'll want to set a few properties.

  1. Assign the map texture to Map.
  2. Set the Pixels Per Unit Ratio to be the number of pixels that equal 1 unit.
  3. Set the Player to be the Transform of the player you wish to track.

If your map texture is not centred, you can adjust the Map Center Position vector.

3. Navigation Markers

If you wish to display Navigation Markers, check out the documentation for that, as they will be automatically rendered.

If you wish to change the size or properties of the UI markers themselves, modify the MapMarkerUI prefab, located in the Core > Prefabs > UI > Navigation folder.
