Doors

Doors are interactable objects which can open and close, be locked, unlocked with a key, or lockpicked. There's quite a bit to them, so let's look at how to set one up.

Setup

To create a door, attach the Door component to your GameObject. Where you put this component doesn't matter. I'd recommend it being on the root object of your door, and not the actual Transform that will swing.

Now, on the actual GameObject which will be moving, or the means of the player interacting with the door to open it, attach 2 components:

  1. Interactable - Used to detect when the player is looking at the door.
  2. Collider - Any type of collider defining the interaction bounds.

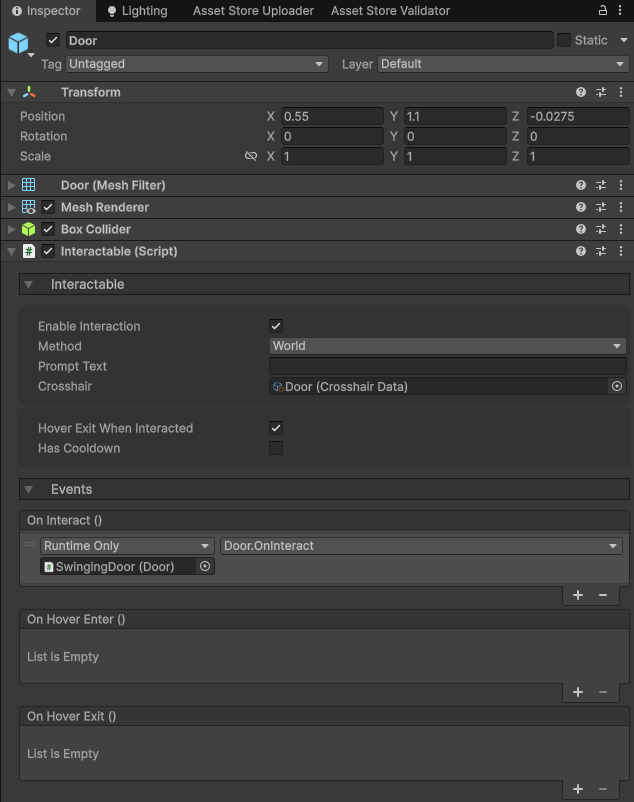

Here, I've gone ahead and attached these components to the model of the door. We then want to connect the OnInteract event to the door component's corresponding OnInteract function. This will not just attempt to open/close the door, but check to see if the player can unlock it first if setup that way.

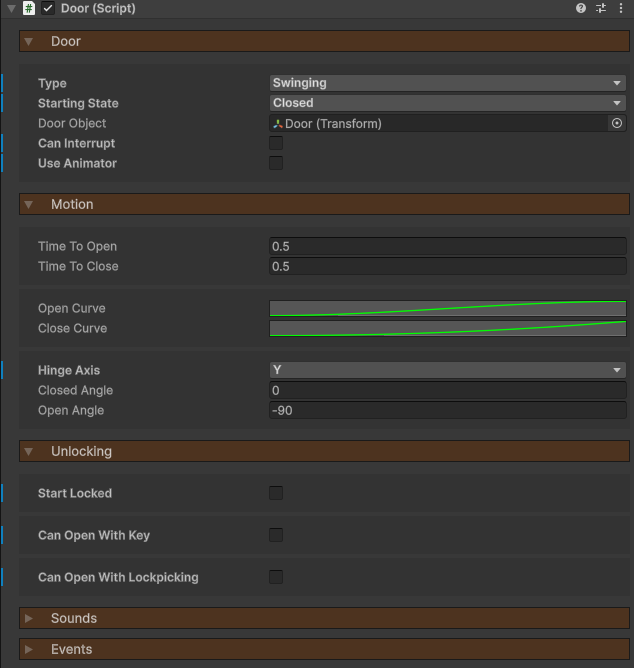

By default, the door will be animated via scripting.

  1. Define the Type of door. Swinging doors animate their rotation, Sliding doors animate their position.
  2. The Starting State determines if the door starts open or closed.
  3. Assign a Door Object, which will be the object that's rotated/moved.
  4. If Can Interrupt is true, the door can change state mid-swing.
  5. Time to Open and Time to Close determine the animation duration.
  6. Open Curve and Close Curve allow you to smooth out the animation.
  7. Hinge Axis determines the local rotation axis the door will swing around.
  8. Closed Angle and Open Angle determine the local rotation for the closed and open state.

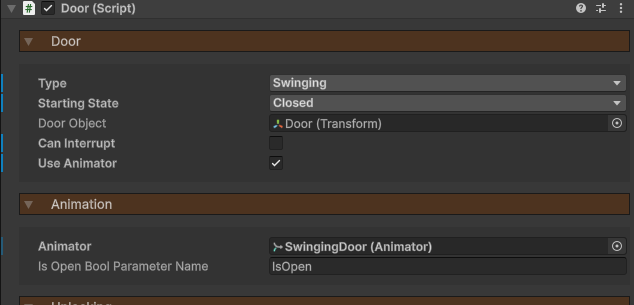

Instead of animating the door via script (which is the default setting), you can choose to connect it to an Animator component. To do this, simply enable Use Animator.

The Is Open Bool Parameter Name is the boolean parameter the component will toggle on the referenced Animator component. Hook this up however you like to your animation.

Unlocking

If you want the door to be locked, enable Start Locked. This will prevent the player from opening the door.

Keys

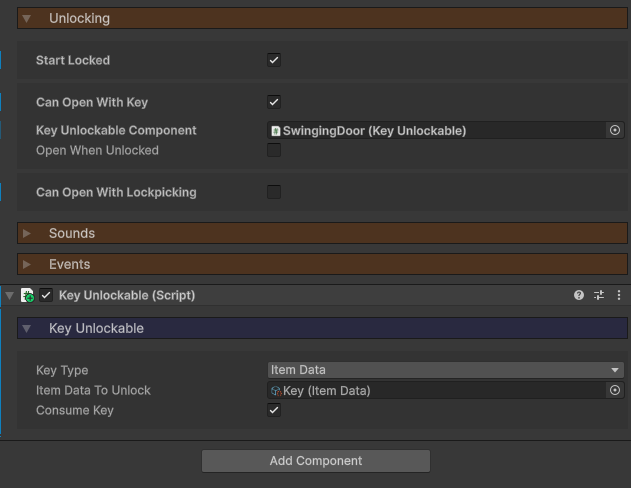

One way of opening the door could be with a key.

  1. Enable Can Open With Key.
  2. Click on the Create New button. This will create a new KeyUnlockable component, which is where we define the type of key (item, pickupable, stat), as well as if the key is destroyed upon unlocking.

Check out Unlockables if you want to learn more.

Lockpicking

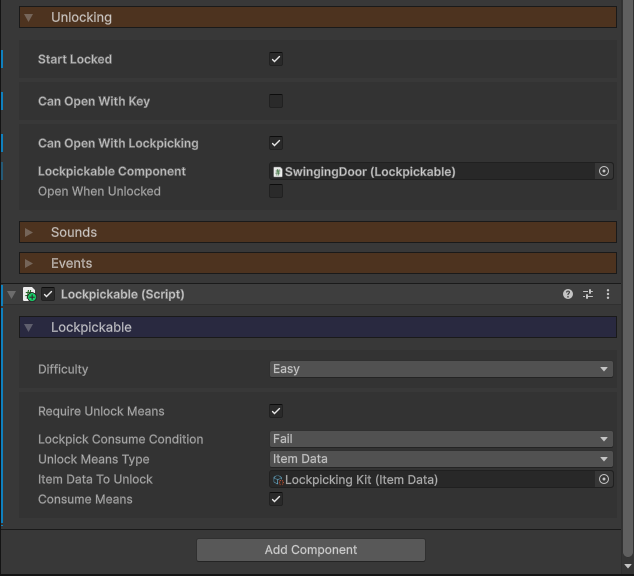

Instead, or as well as a key, you can implement lockpicking to open the door.

  1. Make sure you have a LockpickingController added to your scene.
  2. Enable Can Open With Lockpicking.
  3. Click on the Create New button. This will create a new Lockpickable component, which is where we define the lockpicking settings (difficulty, item required, etc).

Check out Unlockables if you want to learn more.

Events

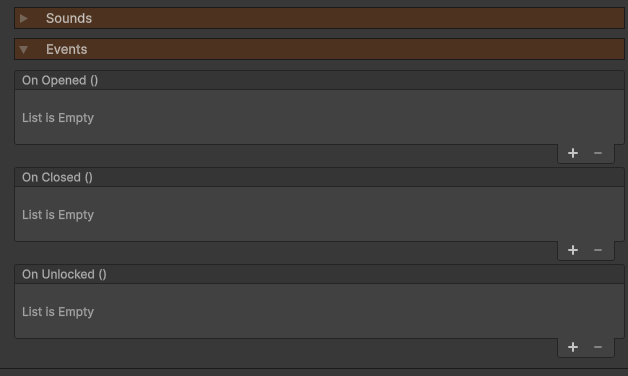

Doors have 3 possible events that can be invoked.

  • OnOpened when the door opens.
  • OnClosed when the door closes.
  • OnUnlocked when the door is unlocked, either via a key or lockpicking.
