Combination Locks

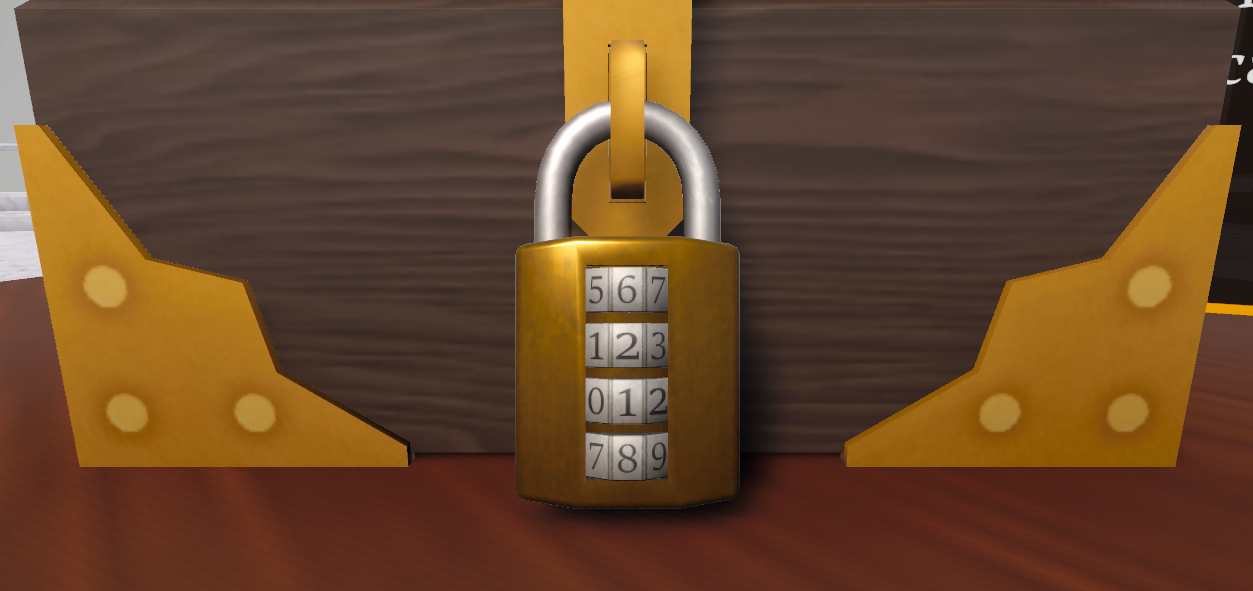

Combination locks are interactables which allow the player to turn dials in order to enter the correct code. These can be useful for locking containers, doors, or any kind of puzzle element.

Setup

1. Prefab

If you go to the Implementation > Prefabs > Locks folder, you will see the CombinationLock prefab. Drag that into your scene and put it wherever you wish. If it's purpose is to lock a container of sorts, I recommend making it a child of that object.

Note

By default these locks have the camera zoom in on them, so make sure you have correctly setup the Camera Focusing system first.

2. Configuration

In the Inspector, we can configure some properties.

  • The Unlock Combination is an array of numbers, defining the required value of each dial to unlock.
  • If Scramble Combination at Start is true, the dials will be randomly turned upon initialization (don't worry, it won't accidently set the unlock combination). If false, you can manually define a starting combination.
  • The Dials list contains all of the Transforms for the dial objects. You can adjust their rotation axis and zero angle (angle in degrees at which 0 is displayed) below.
  • The Dial Interactables Parent is the GameObject which contains all of the individual Interactables, which the player can click on to turn. By default this is disabled, and only enabled when the camera focuses on the lock.
  • Destroy On Unlock will destroy the lock GameObject once unlocked, after Destroy Delay seconds has elapsed.
  • Animate On Unlock will allow you to play an animation once unlocked (animating the lock opening or something).

Unlocking a Box

Let's look at how we can connect a combination lock to a box. This would be ideal for puzzle game.

  1. Drag the Gem Box prefab into your scene, located in the Implementation > Prefabs > Containers folder
  2. Implement the Camera Focusing system.

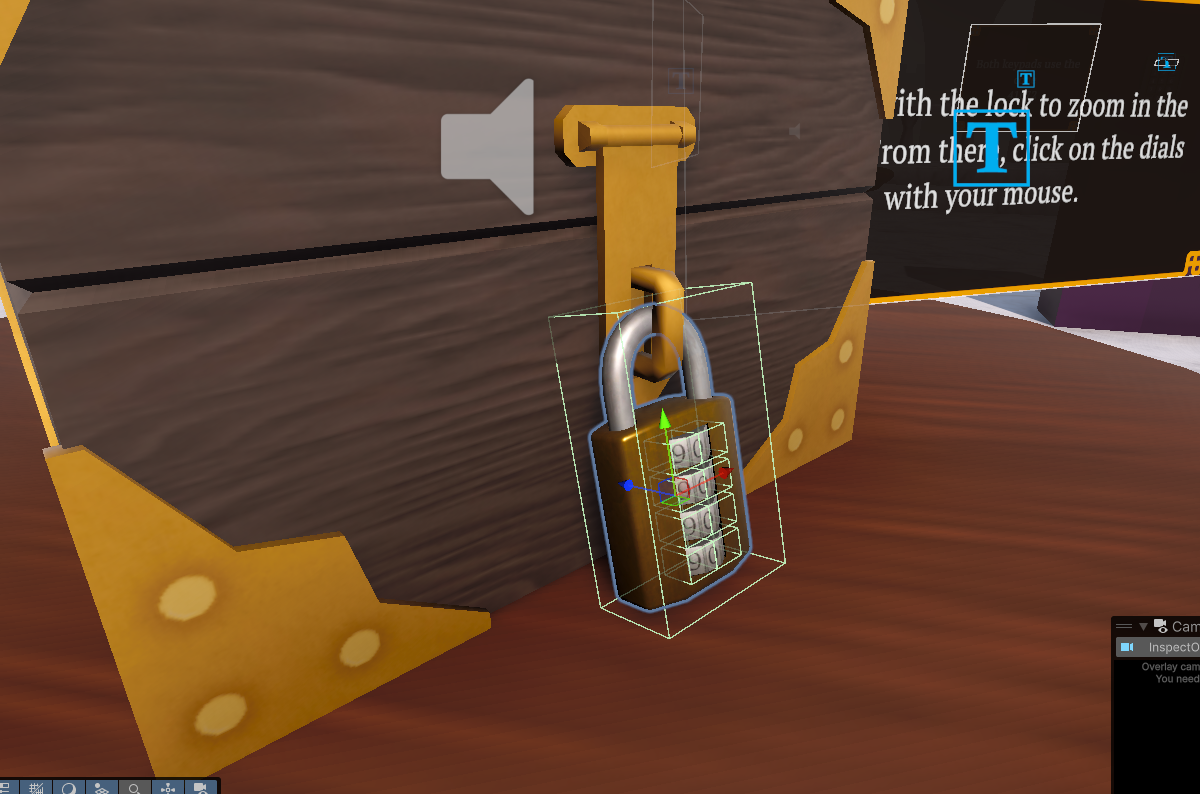

  3. Drag in the Combination Lock prefab, located in the Implementation > Prefabs > Locks folder. Make it a child of the box.

  4. In the Inspector, define an Unlock Combination.

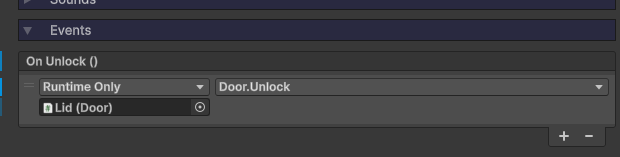

  5. For the combination lock's OnUnlock event, connect that to the Unlock() function on the gem box's Door component.
